SP600 Series Air Compressor Integrator Inverter
Product introduction
- Highly integrated air compressor control process and variable frequency drive technology.
- Equipped with color touch screen display, the product debugging is simple and the operation is easy.
- The control circuit terminal plug-in connector terminals, and mistake proofing plug design.
- High product integration, built-in 220V AC power supply, providing 24V DC external output.
- The product has a high performance of intelligence and is equipped with a comprehensive alarm function: such as input and output phase missing alarm, phase sequence error alarm, motor and head high temperature alarm (PT100 and PTC detection)，inverter overload alarm, overcurrent alarm, overvoltage, undervoltage and so on.
Technical specifications
| Item | Specification |
| Control mode | Open loop vector control, V/F control |
| Upper limit frequency | Open loop vector control：0～600Hz，V / F control： 0～3200Hz |
| Carrier frequency setting | 0.5kHz ～ 15kHz , the carrier frequency is automatically adjusted based on the load features. |
| Input frequency resolution | Digital setting：0.01Hz Analog setting: maximum frequency * 0.025% |
| Starting torque | 0.5Hz/150% |
| Speed range | 1:100 |
Speed stability accuracy | ±0.2% |
Torque control accuracy | ±10% |
| Overload capacity | 60s for 150% of the rated current, 3s for 180% of the rated current. |
| Torque boost | Fixed boost Customized boost 0.1%~30.0% |
| V/F curve | Three ways: linear, multi-point, N power type V/F curve |
| V/F separation | Two types: complete separation; half separation |
| Ramp mode | Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0–6500.0s |
Communication methods | RS485 |
| JOG control | JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500s |
| Built-in PID | It realizes process-controlled closed loop control system easily |
| Automatic Voltage Regulation (AVR) | When the grid voltage changes, it can automatically keep the output voltage constant |
| Frequency source | Digital setting |
| Analog input | 1 pressure sensor: 4 ~ 20mA input 2 temperature sensor： PT100 |
| Digital input | 2 digital input 1 PTC circuit protection (compatible with normal digital input) |
| Digital output | 1 normally open relay output (built in 220VAC voltage) |
| LED diode display | 3 LED displays are standard |
| Motor overheating protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, over temperature, output phase, communication fault, fault current detection, EEPROM write failure and so on. | |
| Place of use | Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil , smoke, vapor, drip or salt. |
| Altitude | Lower than 1000m |
| Ambient temperature | -10°C ～40°C (Downshift if the ambient temperature is between 40°C and 50°C) |
| Humidness | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6g) |
| Storage temperature | -20~+60 °C |

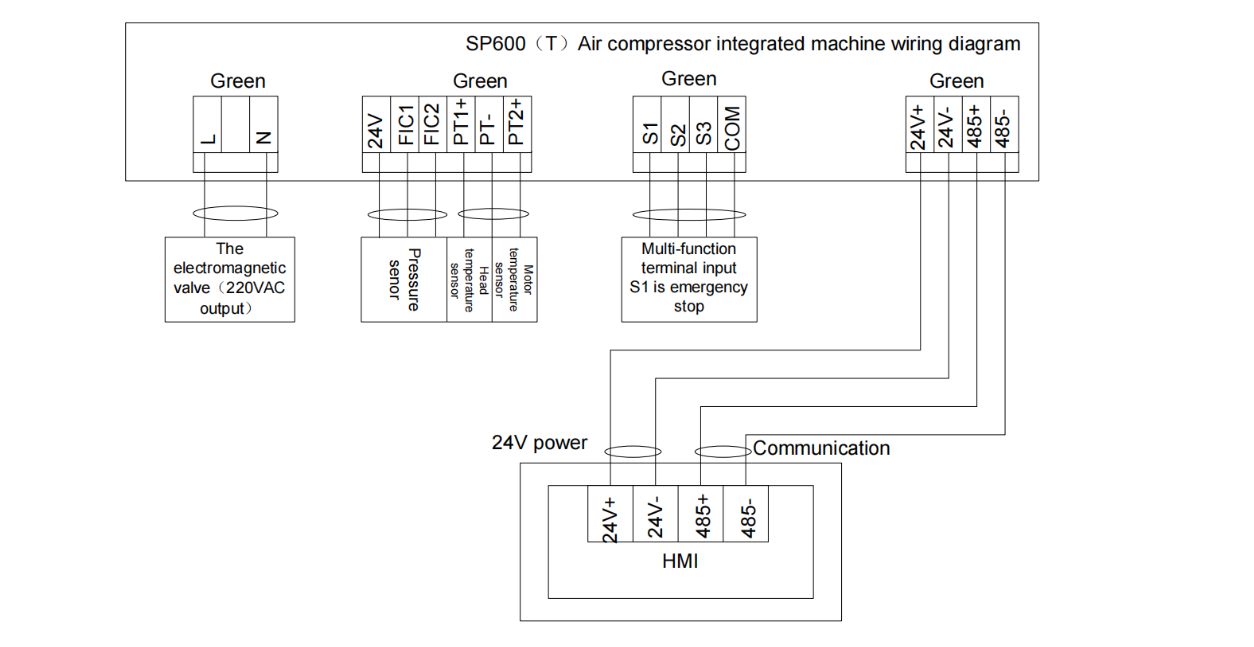

Wiring diagram
1) PT2+,PT- is the PT100 terminal of the motor, please short connect when not connected, otherwise it will report the motor overheating fault.
2）S3 is the PTC terminal of the motor. If it is not connected, please short-circuit it with COM or set P4.02 to 0, otherwise it will also report the motor overheating fault.
