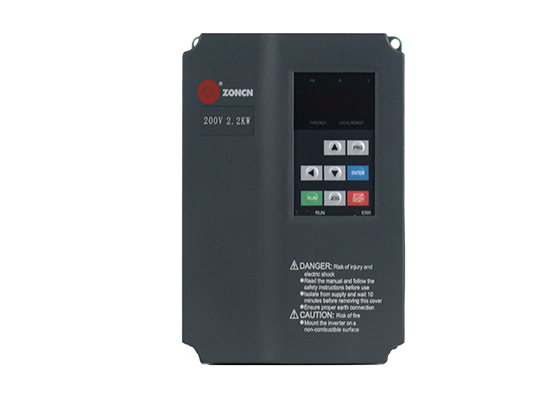

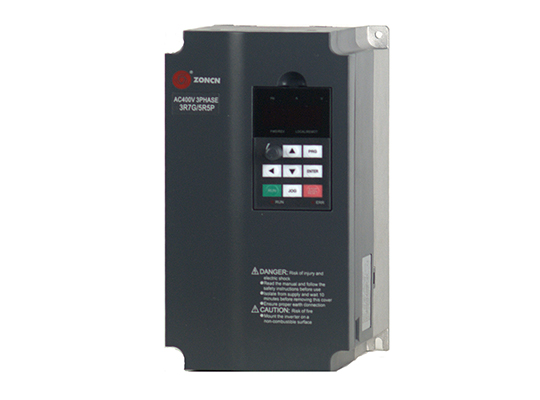

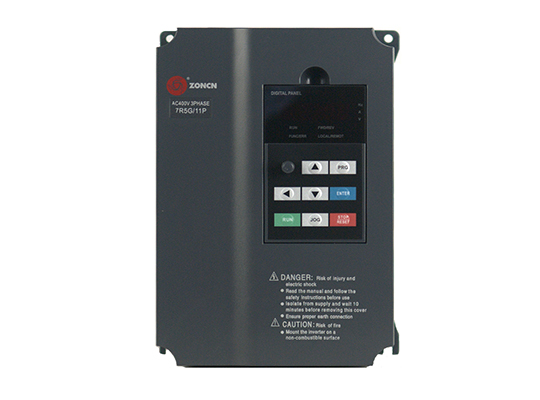

T200 Series Multi-function Vector Control Inverter
Product Introduction
- Economically affordable; Micro compact design;
- Easy to use and install: DIN rail installation(below 3.7kW), keyboard cable with RJ45,STO function (support 380V below 15kW), built-in EMC filter, 24VDCpower supply, PlD adjustment;
- V/F control, open-loop vector control, closed-loop vector control mode;
- Supporting multiple expansion cards: EtherCAT, Profibus-DP, ProfiNet,ModbusTCP, CAN open, Digital l/O, PG card;
- External keyboard parameter copying function;
- All power supports an integrated braking unit;
- Maximum 630KW
Product specification
| Item | T200 specification |
| Maximum frequency | 0-600HZ |
| Carrier frequency | 0.5kHz～16kHz The carrier frequency can be automatically adjusted based on the load features. |
| Input frequency resolution | Digital setting：0.01Hz Analog setting: maximum frequency×0.025% |
| Control mode | Voltage/Frequency control (V/F) Sensorless flux vector control (No PG) Closed loop vector control (Have PG) |
| Startup torque | G Type：0.5Hz/150%（No PG）； P Type：0.5Hz/100% |
| Speed range | 1：100 No pg |
| Speed stability accuracy | ±0.5%（No PG） |
| Torque control accuracy | ±5%（Have PG） |
| Overload capacity | G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current |
| Torque boost | Fixed boost Customized boost 0.1%–30.0% |
| V/F curve | Multi-point V/F curve N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square) |
| V/F separation | Two types: complete separation; half separation |
| Ramp mode | Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0–6500.0s |
| DC braking | DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-100.0s；Braking action current value: 0.0%–100.0% |
| JOG control | Jog frequency range：0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s |
| Onboard Multiple preset speeds | It implements up to 16 speeds via the simple PLC function or by input terminal states |
| Onboard PID | It realizes process-controlled closed loop control system easily. |
Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains voltage changes. |
Over-voltage/ Over-current stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current. |
| Rapid current limit | It helps to avoid frequent over-current faults of the inverter. |
| Torque limit and torque control | It can limit the torque automatically and prevent frequent over-current tripping during the running process. |
| High performance | Control of asynchronous motor is implemented through the high-performance current vector control technology. |
| Instantaneous stop doesn’t stop | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time. |
| Timing control | Timing range 0.0Min～6500.0Min |
| Communication methods | RS-485,Supports CAN, profibus DP, Profinet, EtherCAT, Modbus TCP extensions |
| Running command channel | Given by the panel, control terminals, Serial communication port, can be switched by many ways |
| Frequency source | 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways |
| Auxiliary frequency source | There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis |
| Input terminals | Power ≤ 55KW: 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input; 1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input. Power ≥ 75KW: 6 digital input terminals, one of which supports high-speed pulse input up to 100kHz; 2 analog input terminals, 1 only supports 0-10V voltage input, 1 supports 0-10V voltage input or 4-20mA current input |
| Output terminal | Power ≤ 55KW: 1 digital output terminal 1 relay output terminal 1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output Power ≥ 75KW: 1 digital output terminal, compatible with high-speed pulse output; 2 relay output terminals; 2 analog output terminals, supporting 0~20mA current output or 0~10V voltage output |
| LED display | It displays the parameters. |
| Key locking and function selection | It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function. |
| Protection mode | Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection. |
Application
The T200 Series is a multi-functional, high-performance general-purpose vector inverter. With exceptional compatibility and versatility, it is widely compatible with the vast majority of electrical equipment in the industrial sector.
This series delivers efficient performance in fluid equipment such as fans, pumps and air compressors, and also suits various transmission devices including logistics conveyors, packaging machinery, textile machinery, food processing equipment, small machine tools and HVAC supporting equipment.
It features stable operation, energy conservation, easy commissioning and strong anti-interference performance. Without customized modification, it matches most conventional industrial equipment, fully covers general transmission scenarios of various power levels, meets speed regulation and control demands under different working conditions, making it an ideal choice for energy-saving renovation and automation upgrading of industrial equipment.
